| Brand Name: | Retek |
| Model Number: | D50 Series |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

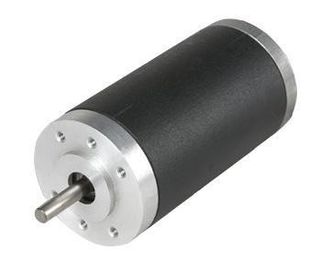

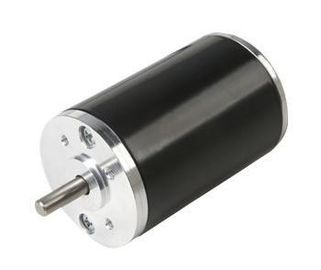

φ50mm OD: D50 Series 50ZYT DC Motors for Automobile, Grinder, Ambulance pump,Breathing Machine
Typical Application:
Gearmotor, linear actuator,power tool, spreader,auger,automations,ambulance pump, breathing machines, air purifiers and so on.
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.
1. Dia.optional: 50mm, 51mm, 52mm.
2. Number of Poles:2
3. Magnet material:Hard Ferrit
4. Insulation Grade: Class F
5. Shaft Material: SS303/SS304, 40Cr, #45 Steel.
6. Frame: Powder Coating, Electroplating,Electrophoresis surface treatment.
7. Armature Design: Skewed Slots Rotor Design for smooth running.
Drawing:
Technical Performances:
| Type | Rated Voltage (VDC) | No-load Speed (r/min) | No-load Current (mA) | Rated Speed (r/min) | Rated Torque (mN.m) | Output Power (W) | Rated Current (A) | Stall Torque (mN.m) | Stall Current (A) |
| D5085A-12 | 12 | 4490 | 0.58 | 3790 | 90 | 35.7 | 4.5 | 577 | 28.9 |
| D5085A-24 | 24 | 4200 | 0.28 | 3600 | 100 | 37.7 | 2.3 | 700 | 16.1 |
| D5085A-48 | 48 | 4280 | 0.17 | 3680 | 100 | 38.6 | 1.3 | 713 | 9.3 |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Our advantage:
1. Our products have a competitive advantage.
2. We have a team of professional engineers to solve various technical problems and provide you with more professional advice.
3. Good working environment and corporate cohesion.
our service:
1. Your inquiry about our products or prices will be answered within 48 hours.
2. Well-trained, experienced staff answer all your questions in fluent English.
3. Check the goods before shipment.
4. We respect your feedback after receiving the goods.
Our company is a manufacturing company specializing in the production of motors. If you have any needs, please contact us, we will protect your sales area, design concept and all private information.
The above motors are a small part of our products for your reference and viewing.
If you want to know more about the product, please contact us!
|
|
