| Brand Name: | Retek |
| Model Number: | W57 Series |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |
| Payment Terms: | T/T, Western Union |

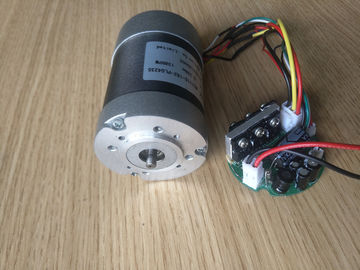

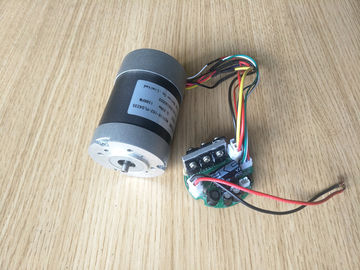

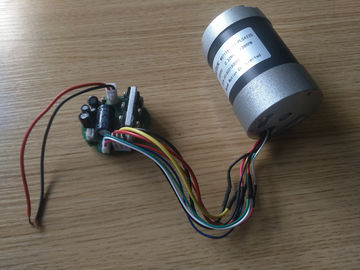

Controller integrated brushless dc motors 57mm 12V/24V 2000-12000RPM for robotics and automation
Typical Application:
Mobility,cars, automatic doors, liquid dispense and rotary diaphragm pump drives, robotics and agricultural and light industrial applications and fans.
Drawing:
Technical Performances
| Model | W5755 | W5775 | W5795 | ||
| Voltage | V | 36 | |||
| No load speed | rpm | ±10% | 5200 | 5200 | 5200 |
| Rated Power | W | 58 | 117 | 180 | |
| Rated torque | Nm | 0.14 | 0.28 | 0.43 | |
| Rated Speed | rpm | ±10% | 4000 | 4000 | 4000 |
| Rated Current | A | ±10% | 2.2 | 4.8 | 6.8 |
| Torque(max) | Nm | 0.4 | 0.6 | 0.9 | |
| Back-EMF constant | V/Krpm | ±10% | 4.5 | 4.8 | 4.83 |
| Torque Constant | Nm/A | ±10% | 0.072 | 0.078 | 0.08 |
| Resistance | ohm | 2 | 0.9 | 0.7 | |
| Weight | Kg | 0.5 | 0.9 | 1.3 | |
| Length | mm | 55 | 75 | 95 | |
For custom made, please feel free to contact us today.
|
|
